VISIOMOD FS SERIES
FS 1500, FS 3000, FS 5000 and FS 7000 model family
The FS series is a family page for base-shoe frameless glass railings, helping compare wind-load range, profile height, glass build-up and anchor review before selecting a model.
TECHNICAL SELECTION LINE
Read wind-load range, profile height and preliminary glass build-up on the same technical scale. Glass thickness alone is not a capacity statement; final selection is verified by panel size, fixing substrate and anchor calculation.
Wind load
Read the 0-7.0 kPa range
Profile class
Check the 80-160 mm profile step
Glass build-up
VSG build-up is project-verified
Anchors
Substrate and edge distance decide
Wind-load range
FS series · 0-7.0 kPa
The animation shows the pre-selection wind-load limit for the selected model. Glass build-up and anchor calculation are verified separately by project data.
Selected model: FS series
WIND-LOAD ROUTING
This is a product-family pre-route only. Glass build-up, panel height, span, line load and anchor calculation are verified by project data.
Glass build-up
Glass combinations are not standalone capacity statements; panel height, span and project load verify the final build-up.
Profile and anchors
80, 100, 125 and 160 mm profile classes are selected together with glazing depth, fixing substrate and anchor edge distance.
Wind-load reading
The 0-7.0 kPa range is a pre-selection scale for the FS family. Final system class is confirmed by project calculation.
PROFILO TECNICO
Verificare prima il carattere del sistema, poi materiale, vetro o tamponamento, dettaglio di fissaggio, ancoraggi e dati prestazionali.
Materiale
Alluminio + vetro VSG
PROFILO BASE

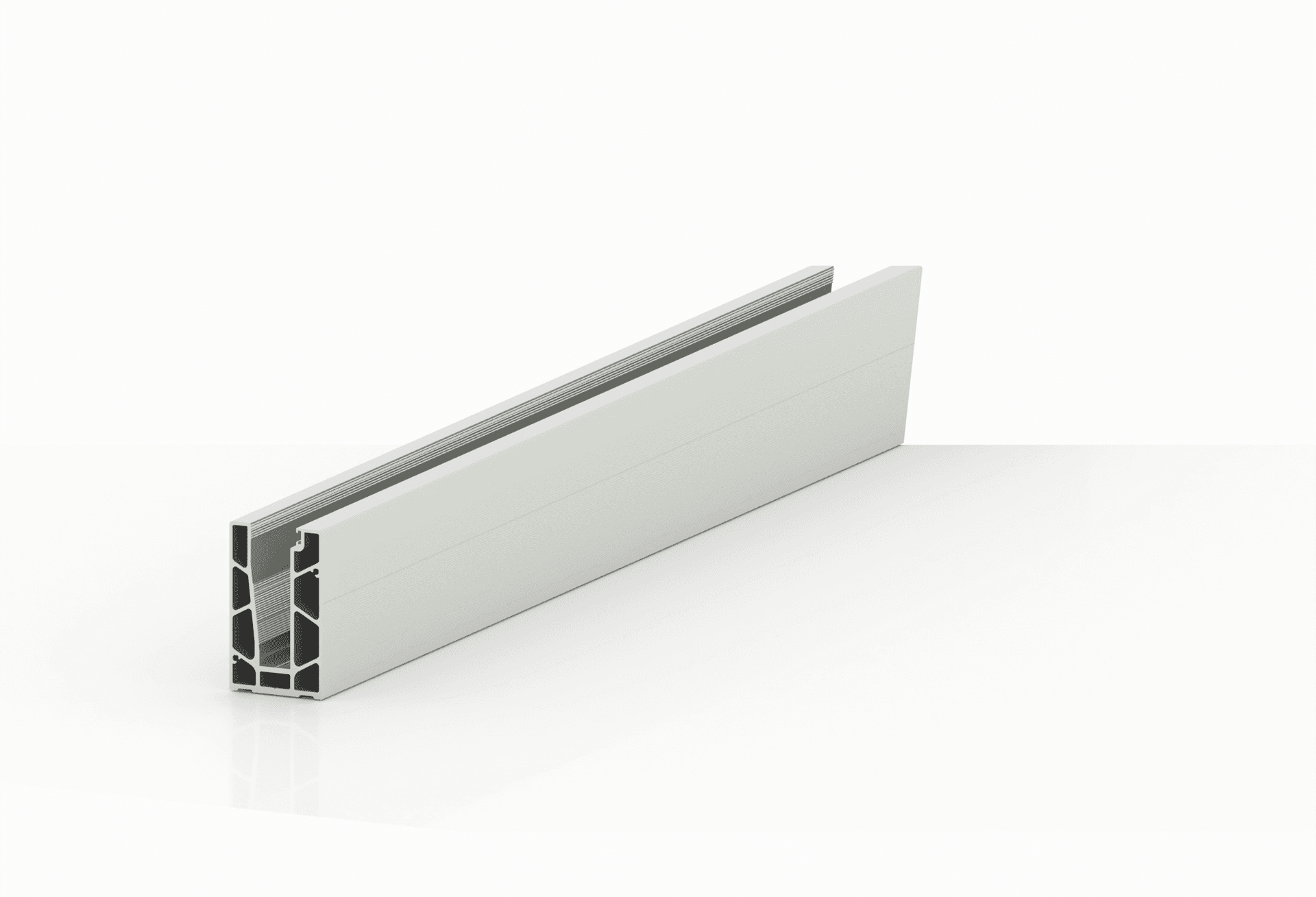

L’immagine tecnica mostra solo la sezione del profilo; stratigrafia vetro, ancoraggi e dettaglio di posa restano da verificare.
Carico vento
Certificazione

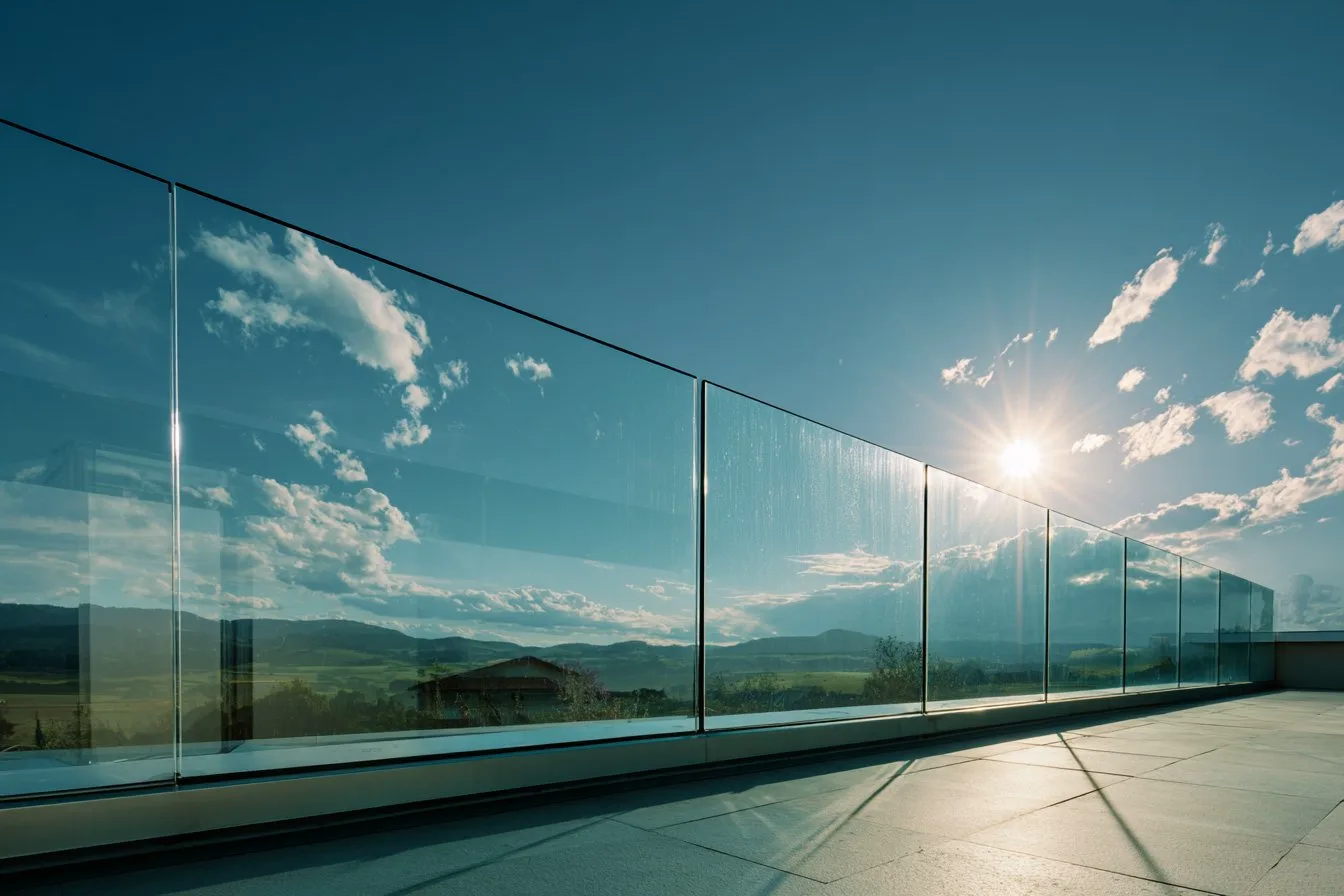

The FS base-shoe glass railing family compares FS 1500, FS 3000, FS 5000 and FS 7000 on the same technical scale instead of opening a single model first. FS 1500 is the starting class for standard balcony and terrace edges; FS 3000 is reviewed for enhanced wind loads and commercial edges; FS 5000 is the intermediate high wind-load class with a 125 mm profile; FS 7000 is positioned for advanced wind-load and high-rise scenarios.
Pre-selection reads wind-load range, profile height, glazing depth and VSG laminated glass build-up together. 6+6, 8+8, 10+10, 12+12 or 15+15 mm glass combinations are not standalone capacity statements; panel height, span, line load, fixing substrate, anchor edge distance and waterproofing must be verified by project calculation.
This page compares the product family. Final glass build-up, fixing type and anchor selection are confirmed by project data, local regulation and engineering review.
Configura questo prodotto online in 3D: misure, colore, accessori e richiesta di preventivo.

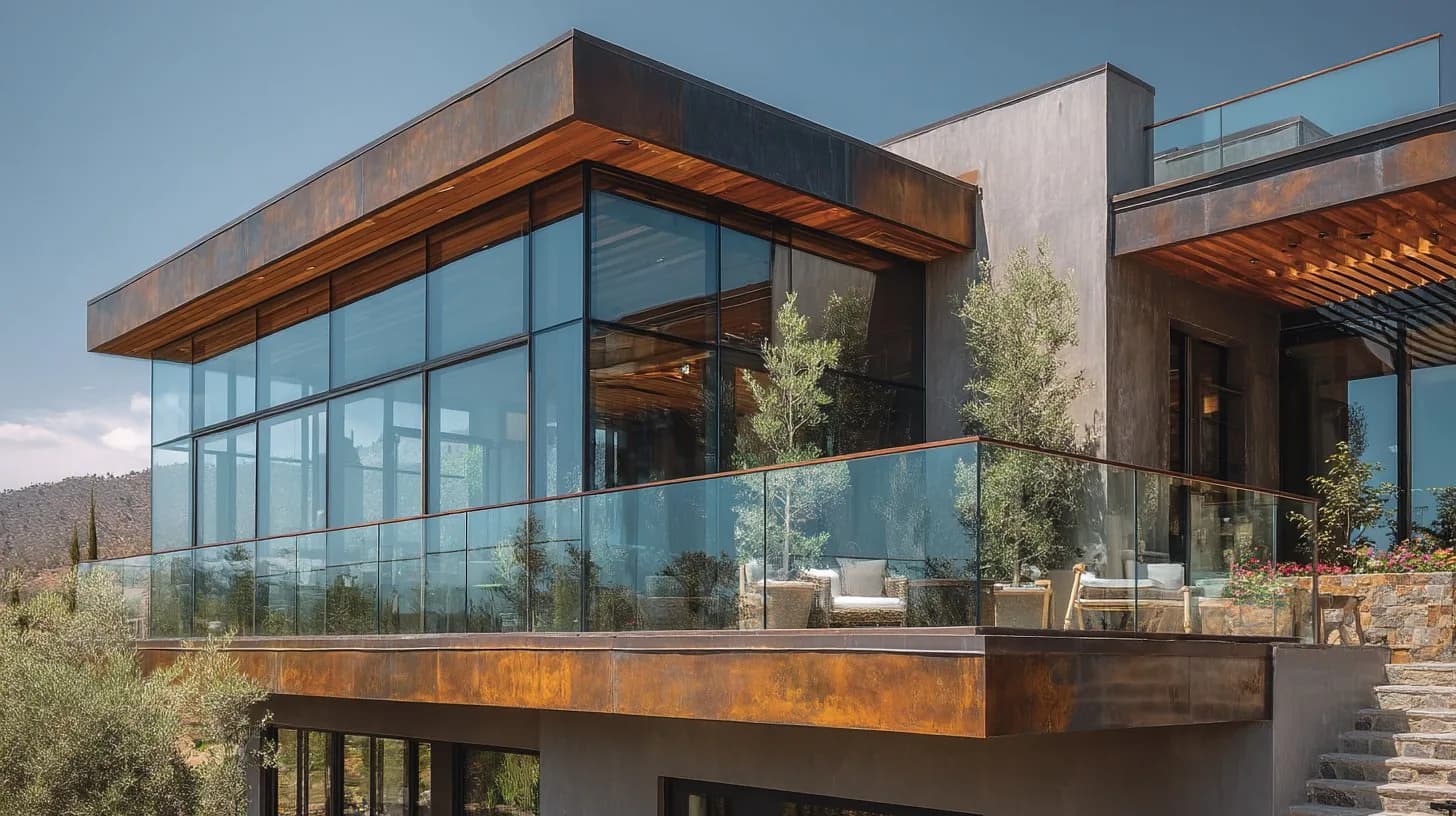

Ringhiera in vetro senza telaio per uso residenziale
Scopri di Più →

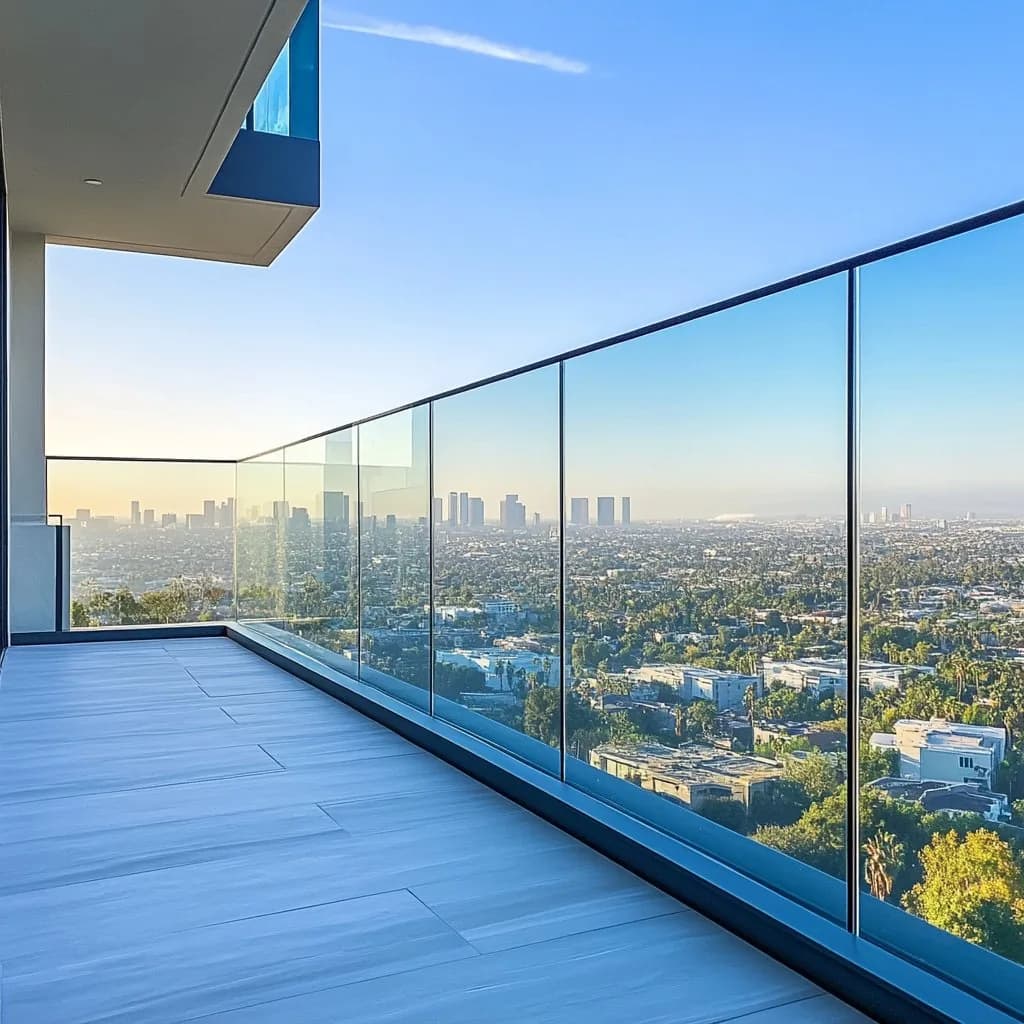

Ringhiera in vetro senza telaio per edifici commerciali
Scopri di Più →

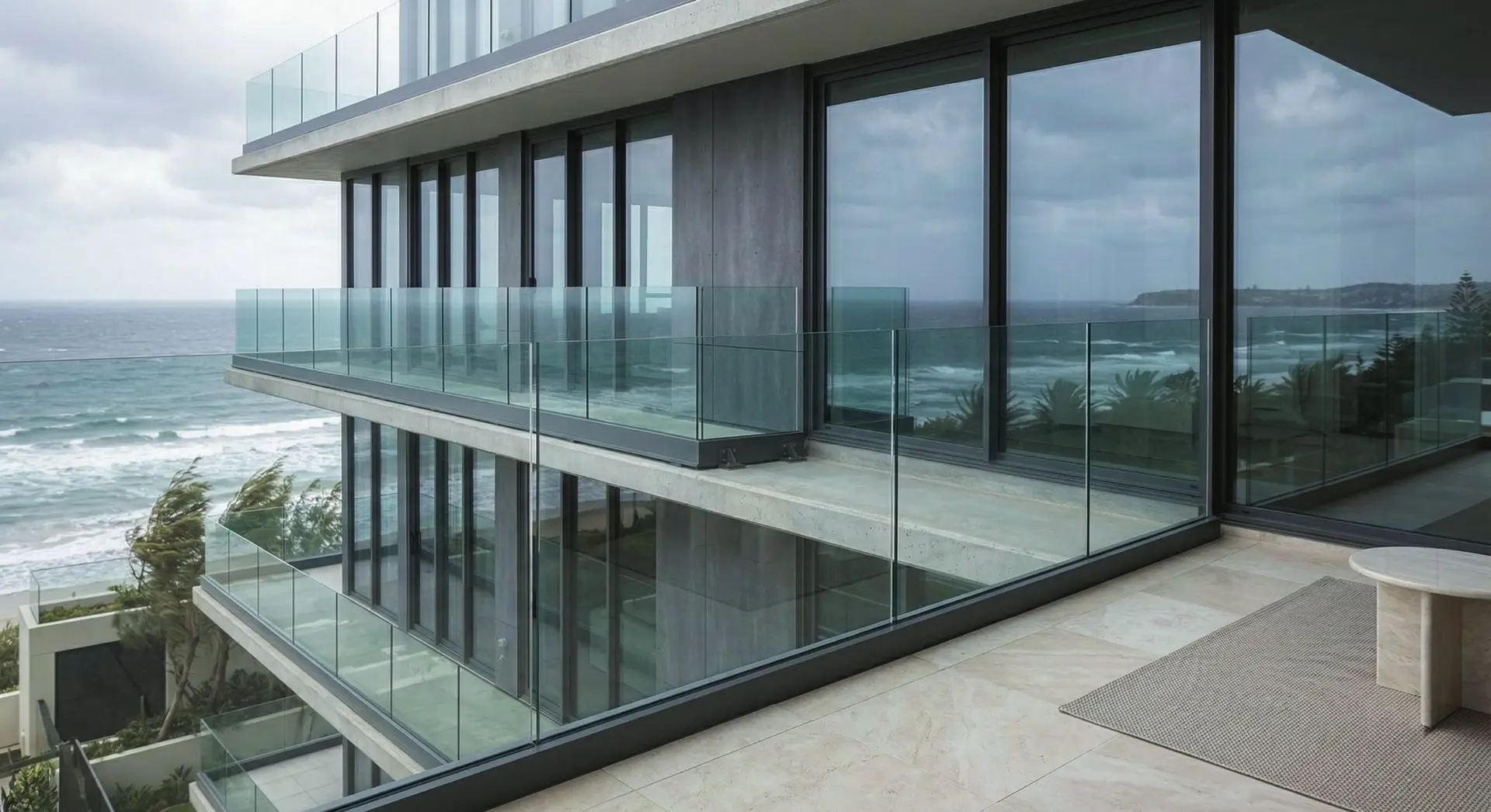

Classe intermedia con profilo piu profondo
Scopri di Più →Confrontate i sistemi di parapetti in vetro Alcodec per il vostro progetto
| Specifica | Alcodec FS 1500 Ringhiera in Vetro | Alcodec FS 3000 Ringhiera Commerciale | FS 5000 parapetto vetro carico vento elevato | Alcodec FS 7000 Ringhiera Alta Resistenza | Parapetto in vetro Alcodec con spigot quadrati | Alcodec VisioAir parapetto in vetro con montanti |
|---|---|---|---|---|---|---|
| Materiale | Alluminio + vetro VSG | Alluminio + vetro VSG | Alluminio + vetro VSG | Alluminio + vetro VSG | Aluminium square or round base clamp + VSG laminated glass | Aluminium posts + VSG Glass |
| Profile Family | Slim base profile for residential edges | Reinforced base profile for commercial edges | Intermediate-depth base profile | High-duty base profile | — | — |
| Base Profile Size | 60 mm width / 80 mm height | 60 mm width / 100 mm height | 60 mm width / 125 mm height | — | — | — |
| Glazing Depth | 65 mm | 84 mm | 105 mm | — | — | — |
| Catalogue Module | Up to 1200 mm railing height; 6+6 +1.52 mm or 8+8 +1.52 mm VSG by project check | Up to 1200 mm railing height; 12 mm or 16 mm glazing by project check | Up to 1200 mm railing height; 12 mm, 16 mm or 20 mm glazing by project check | — | — | — |
| Spessore vetro | 6+6mm / 8+8mm / 10+10mm VSG by height and exposure | 12 mm / 16 mm glazing range; VSG build-up by project check | 12 mm / 16 mm / 20 mm glazing range | 12+12mm / 15+15mm VSG by height and exposure | 12.7-17.5 mm glass range; 6+6 / 8+8 VSG by project check | 2×8mm VSG by project check |
| Carico vento | Residential and low-to-mid exposure project check | Enhanced wind-load project check | Intermediate exposure project check | High exposure project check | — | — |
| Riciclabile | 98% | 98% | 98% | 98% | 98% | 98% |
| Certificazione | EN 1991-1-1 / EN 12150 / EN ISO 12543 project check | EN 1991-1-1 / EN 12150 / EN ISO 12543 project check | EN 1991-1-1 / EN 12150 / EN ISO 12543 project check | EN 1991-1-1 / EN 12150 / EN ISO 12543 project check | EN 12150 / EN ISO 12543 project check | EN 1991-1-1 / EN 12150 / EN ISO 12543 project check |
| Body Diameter | — | — | — | — | 100 x 100 mm or Ø100 mm body geometry | — |
| Body Height | — | — | — | — | 180-183 mm body height range | — |
| Glass Structure | — | — | — | — | VSG laminated safety glass; monolithic only where project and regulation allow | — |
| Montaggio | — | — | — | — | Floor-mounted square or round point shoe on verified slab, sill or parapet | Facade, sill or balcony edge review |
| Mounting Review | — | — | — | — | Anchor edge distance, substrate thickness, waterproofing and shoe spacing by project check | — |
| Usage | — | — | — | — | Outdoor balcony, terrace edge and compact view line | — |
| Application | — | — | — | — | Villa balcony, compact terrace and parapet-top glass line | Urban residential balconies and service-balcony screens |
| Montanti | — | — | — | — | — | Rear post, between-post or handrail-supported option |
| Profile Use | — | — | — | — | — | Horizontal service-balcony and air-conditioner balcony profiles |
