LUXA-100T

Luxa 100T Screen ZIP Textil

Name: Luxa 100T Screen ZIP Textil
Brand: LuxaShade
SKU: LUXA-100T

Screen ZIP cu țesătură textilă decorativă

Luxa 100T combină protecția solară ZIP cu opțiuni de țesătură textilă premium. Gamă largă de țesături, modele și transparențe. Personalizare totală pentru proiecte arhitecturale.

CARACTERISTICI TEHNICE

material

Aluminium

max Expansion

30000mm

total Surface

120m²

recyclable

98%

system

Horizontal roof blind

ZIP Mechanism & Fabric View

ZIP Screen Mechanism — Side Section

ZIP-guided fabric system: motorised lowering/raising from aluminium cassette. Side-rail guide prevents fabric flutter, 130 km/h wind resistance.
Tubular motor (Somfy/Becker) for silent operation. Remote control, wall switch or smart-home integration.
Sun-screening fabric options: 3–10% openness factor for outward visibility. Screen, blackout and transparent PVC alternatives. 95%+ UV protection.
Energy efficiency: 8–12 °C indoor temperature reduction, 30–50% air-conditioning savings. LEED/BREEAM green building contribution.

Plan View — Top-Down View

Top-down animation shows ZIP cassette, side-rail profiles and fabric area. Live coverage percentage tracking.
ZIP tooth-guide detail: fabric edge locks into side rail for wind-tight sealing.
Bottom bar profile and fabric tensioning system. Cassette dimensions and mounting clearances shown in plan.
Vertical and horizontal application: window, veranda, winter garden, pergola integration. Max. 6 m × 5 m.

30000

mm max length

120

m² max surface

☀️

Overhead shade

98%

Recyclable

Technology & Details

Horizontal Top ZIP Screen

Overhead coverage for glass roofs, skylights and pergola rafters

⬆️01

Horizontal Mounting

horizontal

Unlike vertical screens, the Luxa 100T mounts horizontally across glass roofs, skylights and pergola structures. Provides overhead shade without blocking side views.

30m Length, 120m² Coverage

120m²

The largest screen format available. Covers entire glass roof structures in a single continuous run for seamless shade.

Motor or Manual Option

Available with electric motor for automated operation, or manual crank for installations without power access.

UV and Heat Protection

Overhead screen fabric blocks solar heat before it enters through glass roofs. Dramatically reduces greenhouse effect in conservatories.

Roof ZIP Rail System

Horizontal ZIP guide rails mounted to pergola or conservatory rafters. Fabric stays flat and taut even with significant spans.

Fabric Options

Choose from transparent, semi-transparent, or blackout fabrics depending on required light level and privacy.

Galerie

Produse Asociate

LUXA-100

Luxa 100 Screen ZIP Motorizat

Screen exterior ZIP motorizat cu ghidaj lateral

Află Mai Multe →

LUXA-100S

Luxa 100S Screen ZIP Manual

Screen exterior ZIP cu manivelă pentru ferestre și verande

Află Mai Multe →

LUXA-100M

Luxa 100M Screen ZIP Format Mare

Screen ZIP motorizat pentru suprafețe vitrate mari

Află Mai Multe →

APLICAȚII

Domenii de Aplicare

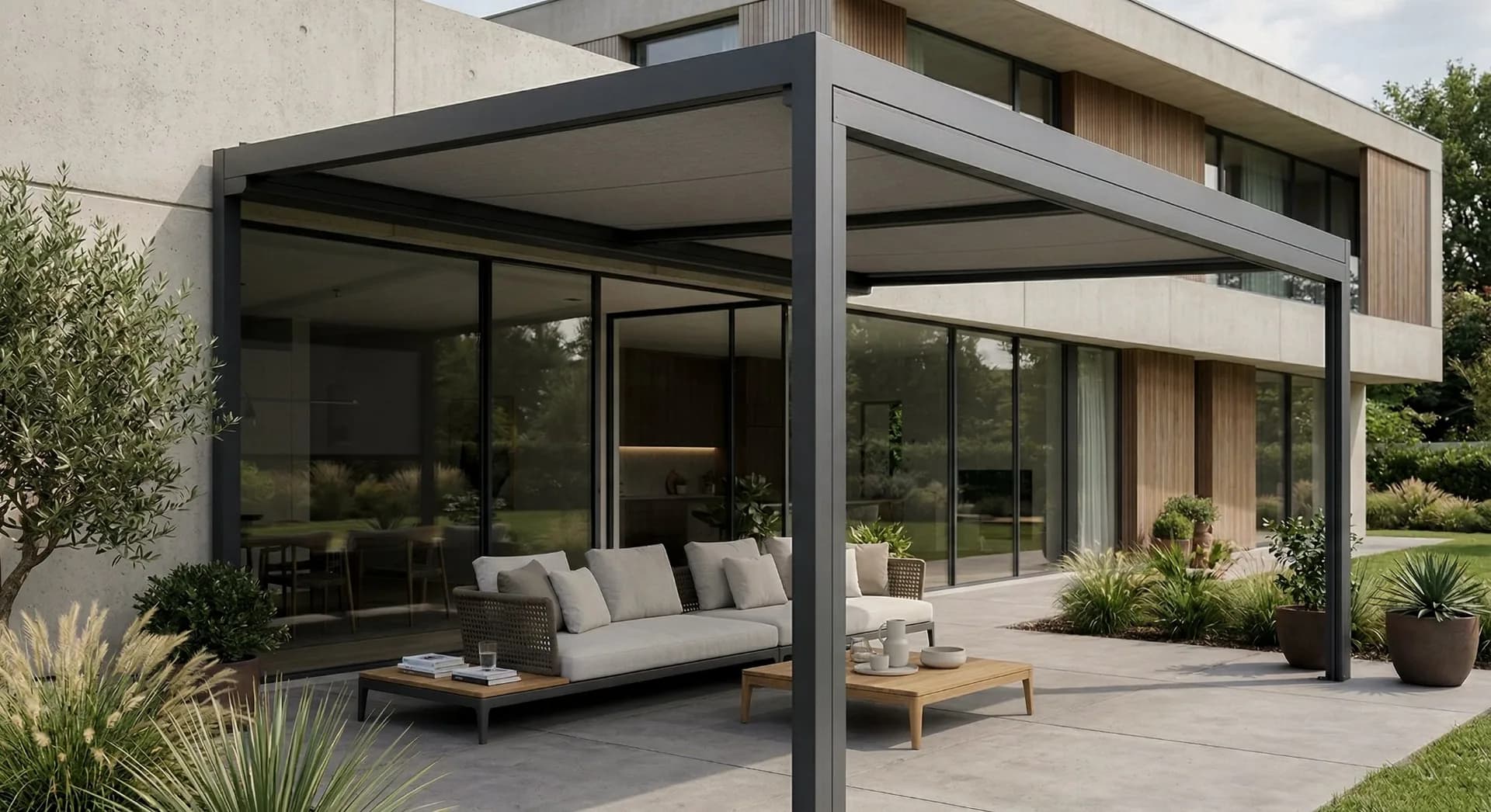

Pergola Roof Shading

Horizontal sunshade for bioclimatic pergolas and louvred roof systems. Filters sunlight even when louvres are open, providing up to 95% UV protection. Motorised control at the touch of a button.

Integrates into existing pergola profiles — no additional structural support required. Wind sensor for automatic retraction.

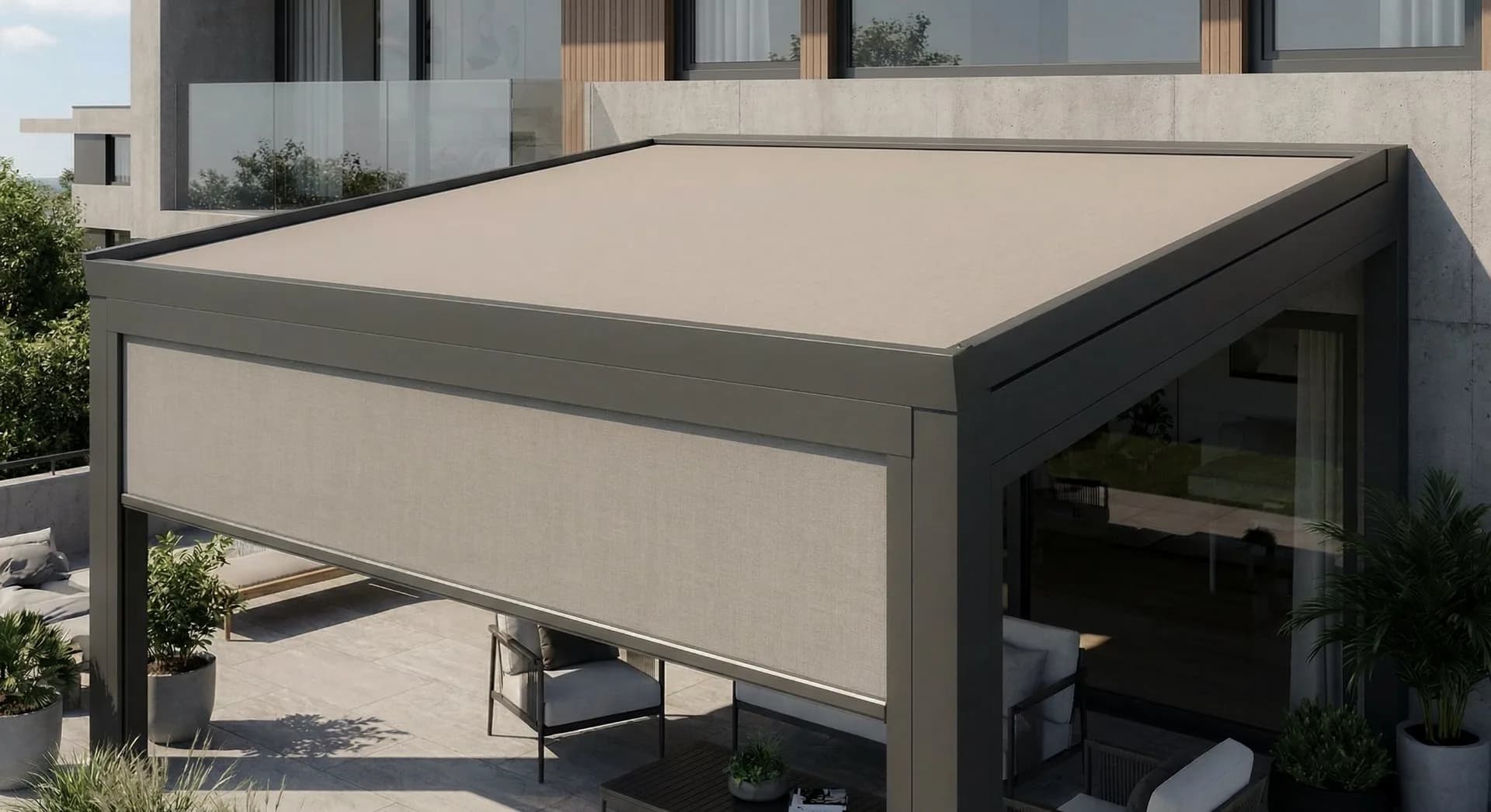

Winter Garden Glass Roof

The biggest problem with glass-roofed verandas is overheating in summer. Luxa 100T reduces the greenhouse effect by up to 70% when mounted below or above the glass roof.

Dual-sided fabric reflects light externally while preserving the view inside. Blackout option available.

Skylight and Atrium

Control skylights in commercial buildings, shopping centres and office atriums. Cover up to 120 m² with a single unit.

Aluminium rail system provides high wind resistance. Silent motor technology for office environments.

ACCESORII

Completează Instalarea

Motor Control

Somfy 230V or 24V motor — whisper-quiet operation, 130 km/h wind resistance.

Weather Sensor

Sun, wind and rain sensor — automatic open/close control.

Smart Home

Compatible with Apple HomeKit, Google Home, Amazon Alexa.

Mounting Bracket

Wall, ceiling and recess brackets for every application.

FINISAJE

Culori & Acoperiri

RAL 7016

RAL 9005

RAL 9010

RAL 7035

RAL 8014

RAL 9006

RAL 3004

RAL 6005

TIGER Coatings QUALICOAT · 450+ RAL · Cassette and rail colours can be matched to the building facade.

Frequently Asked Questions

Luxa 100T Screen ZIP Textil

A ZIP screen is guided by a zip-rail system on both sides of the fabric. This prevents flapping in wind, light leakage, and insect entry — impossible with regular screens.

Yes, thanks to the ZIP rail system, it withstands wind speeds up to 130 km/h. The fabric stays locked in the frame.

ZIP screens save 30-50% on cooling costs and 20-30% on heating costs. They block 95% of solar heat (Fc value: 0.05-0.15).

Sertex technical fabrics, Serge Ferrari composite fabrics, and sunscreen fabrics. Openness factor ranges from 1% to 10%.

Yes, with Somfy motors compatible with Apple HomeKit, Google Home, and Amazon Alexa. Automatic control via sun, wind, and rain sensors.

Which ZIP Screen Is Right for You?

Compare Luxa ZIP screen models to make the right choice

Luxa 100 Screen ZIP Motorizat

OrientationDikey

Max Width6.000mm

Max Height6.000mm

Wind Resistance130 km/h

ControlMotorlu

Fabric TypeSertex / Serge Ferrari

MotorSomfy 230V

View product →

Luxa 100S Screen ZIP Manual

OrientationDikey

Max Width5.000mm

Max Height5.000mm

Wind Resistance130 km/h

ControlSolar Motor

Fabric TypeSertex / Serge Ferrari

MotorGüneş Enerjili

View product →

Luxa 100M Screen ZIP Format Mare

OrientationDikey

Max Width5.000mm

Max Height5.000mm

Wind Resistance130 km/h

ControlManuel

Fabric TypeSertex / Serge Ferrari

Motor—

View product →
